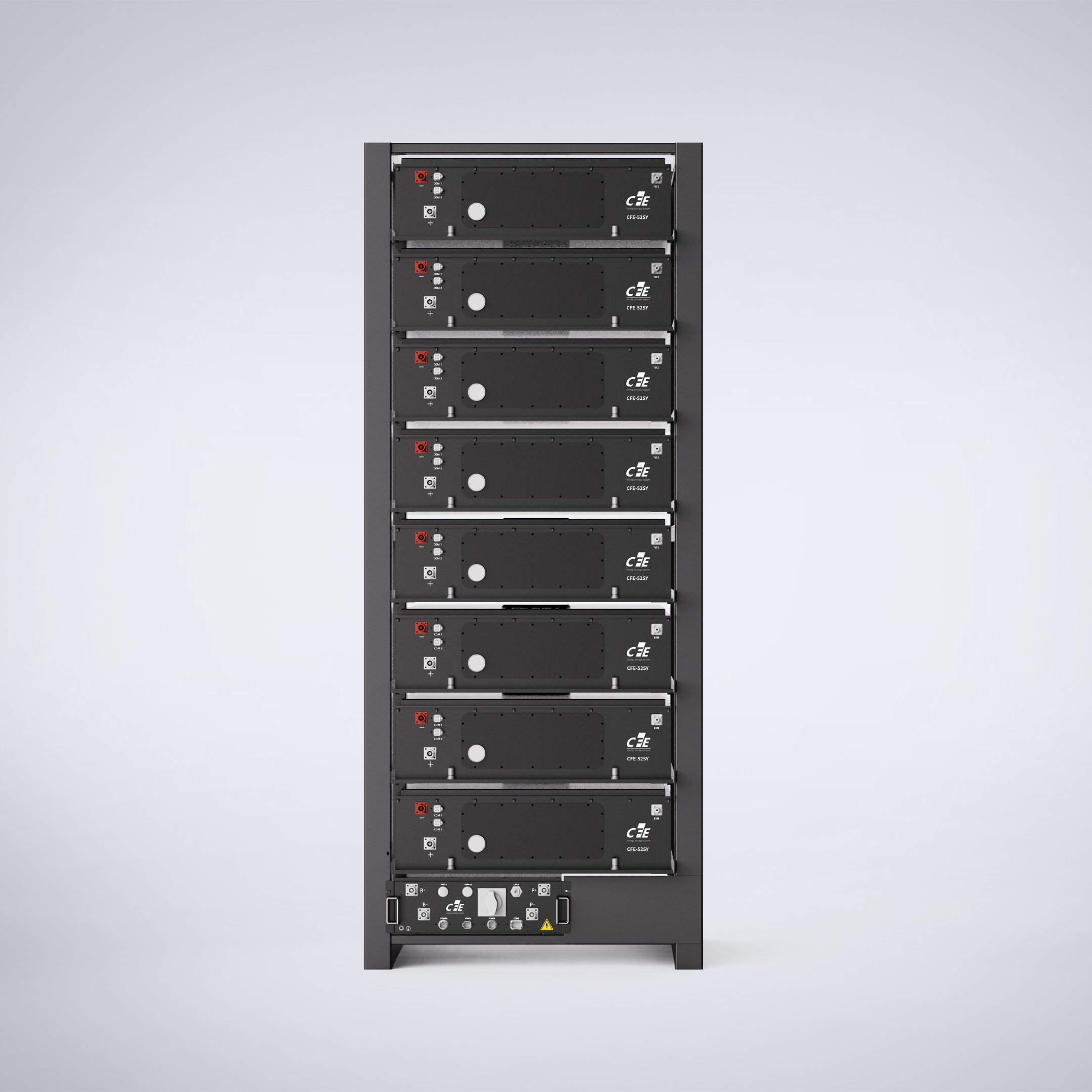

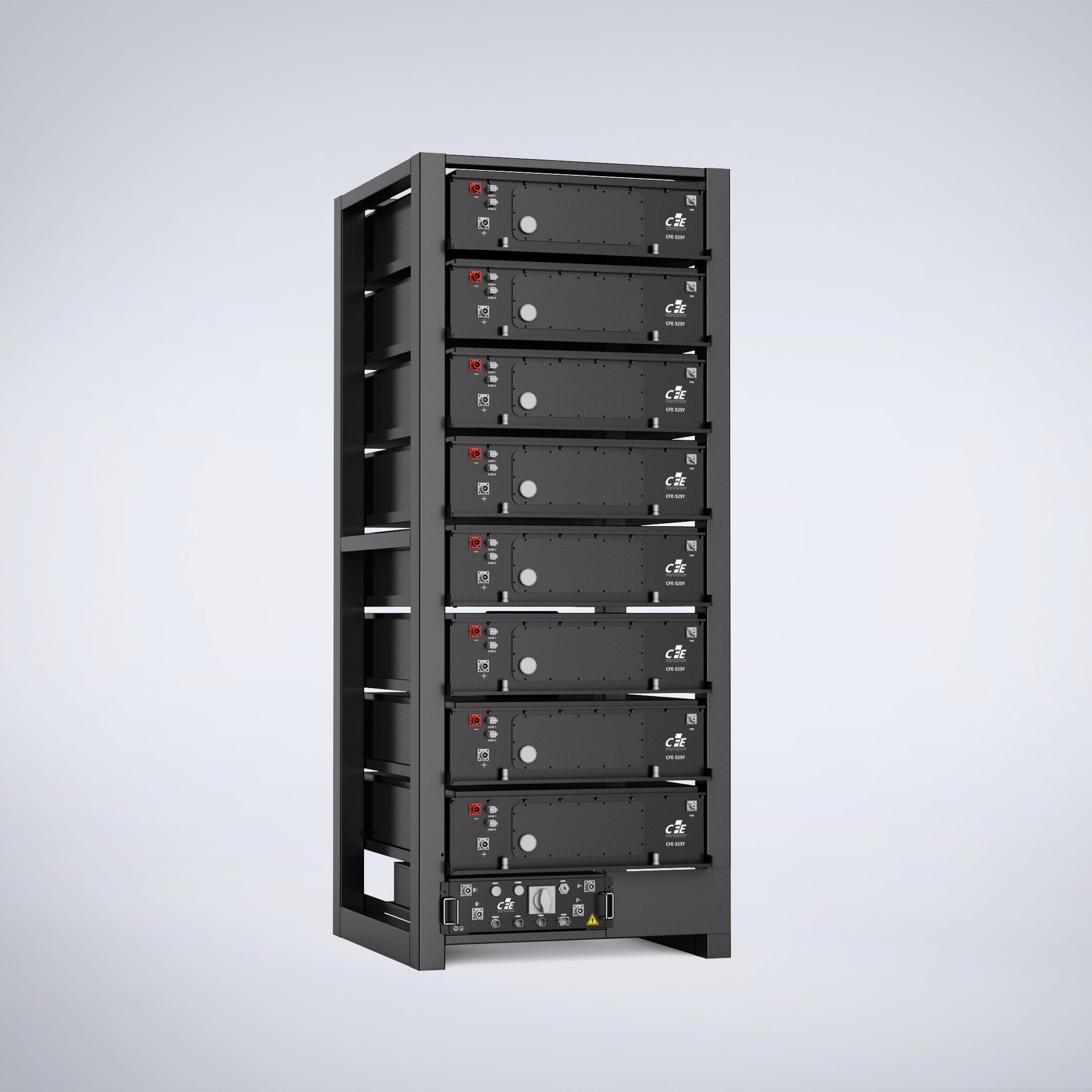

Liquid Cooling 372KWh

1.High reliability:

Combined with both automotive and energy storage design, and combined with the system to accumulate perfect FMEA analysis, the performance is rock-solid, effectively guaranteeing long-term operation

2.High safety:

Complete fault detection is available. For example, voltage disconnection, temperature abnormality, balance abnormality, etc. Early warning when abnormal, timely processing to ensure failure safety

3.Low maintenance cost:

Intelligent address assignment function, no manual setting, greatly reducing the cost of maintenance from the control

4.Full-time equalisation strategy:

Advanced full-time equalisation strategy, effectively controlling the inconsistency of the battery core

Product Description

Product Parameters

Basic Parameters

Liquid Cooling 372kWh

PACK

Series and Parallel

1P52S

Capacity

280Ah

Rated voltage

166.4V

Charge cut-off voltage

187.2V

Discharge cut-off voltage

145.6V

Standard charge

140A

Standard discharge

140A

Weight

380kgs

Size

851*1174*263mm

Electricity

46.592kWh

Rack

Series and parallel

1P416S

Capacity

280Ah

Rated voltage

1331.2V

Charge cut-off voltage

1497.6V

Discharge cut-off voltage

1164.8V

Standard charge

0.5C

Standard discharge

0.5C

Weight

3400kgs

Size

1021*1180*2554mm

Cooling method

liquid cooling

Electricity

372.736kWh
