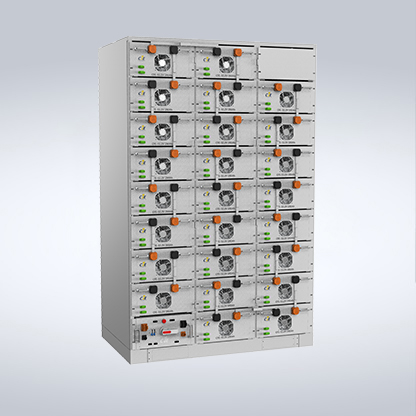

Air Cooling 372KWh

1.High reliability:

Combined with vehicle and energy storage design, combined with system accumulation to improve FMEA analysis, rock-solid performance, effectively guarantee long time operation

2.High security:

Complete fault detection. For example, the voltage is broken, temperature is abnormal, and balance is abnormal. If an exception occurs, alarm is generated and handled in time to ensure failure safety

3.Low maintenance cost:

With intelligent address allocation function, no manual setting is required, greatly reducing the maintenance cost of slave control

4.Full-time balancing strategy:

Advanced full-time balancing strategy, effectively control cell inconsistency

Product Description

Product Parameters

Basic Parameters

Air Cooling 372KWh

PACK

Series and Parallel

1P16S

capacity

280Ah

Rated voltage

51.2V

Charge cut-off voltage

58.4V

Discharge cut-off voltage

44.8V

Standard charge

140A

Standard discharge

140A

Weight

110kgs

Size

426*750*236mm

Electricity

14.33kWh

Rack

Series and parallel

1P416S

Capacity

280Ah

Rated voltage

1331.2V

Charge cut-off voltage

1497.6V

Discharge cut-off voltage

1164.8V

Standard charge

0.5C

Standard discharge

0.5C

Weight

3400kgs

Size

1021*1180*2554mm

Cooling method

forced air cooling

Electricity

372.736kWh
