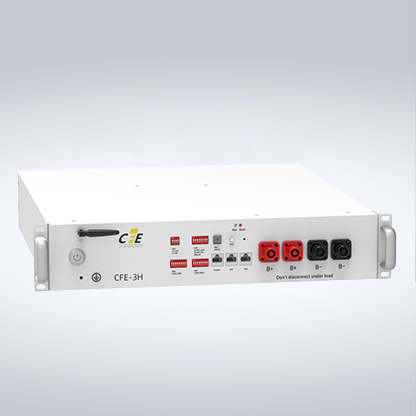

CFE-3H
1.Safety :
LFP(Lithium ion Phosphate) the highest safety
2.Up to 8 Series or Parallel :
Flexible to increase voltage capacity without any other equipments or settings
3.Cycle Life :
80% of initial capacity after 6000
4.WiFi & APP :
Integrated WiFi Modem OTA online upgrade convenient after-sales service
5.Installation :
Simple buckle fixing minimize the installation time and cost
6.High-precision SOC :
Accurate sampling of voltage and current SOC mathematic more accurate and never jump
Product Description
Product Parameters

Basic Parameters

CFE 3H

Nominal Voltage(V)

51.2

Nominal Capacity(Wh)

3072

Usable Capacity(Wh)

2611

Dimension(mm)

442*500*89

Weight(Kgs)

25

Charge/Discharge Current(A)

60(Recommend)

60(Max)

100(Peak@15s)

Communication Port

CAN / RS485

Single string quantity(pcs)

8

Charge Working Temperature(℃)

0~45

DisCharge Working Temperature(℃)

-10~55

Storage Temperature(℃)

-10~35

Humidity

0~95% (No Condensed Water)

Altitude(m)

<2000

IP Rating

IP20

Warranty

5 years

Cycle life

6000

Authentication Level

CE & TUV(IEC 62619, IEC 62040) UN3480

Cooling Type

Ambient Cooling

Installation

Cabinet or Wall Mounting
